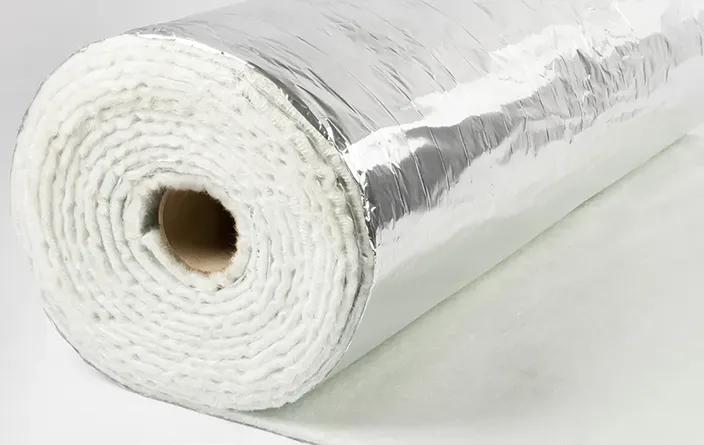

SONO-AL
Thermal & Acoustic Insulation for Smoke extraction and ventilation systems.
25 µm Aluminium
Fiberglass mat
The initial layer consists of 15 µm thick of aluminium, followed by a 10 mm needle punched fiberglass mat as thermal insulation and vibration damping solution.
Units
Thickness
[mm]
SONO-AL
10 ± 15%
Density
[kg/m3]
150 ± 15%
Weight
[kg/roll]
8 ± 15%
Width
[m/roll]
1±5%
Length
[m/roll]
5±5%
Surface
[m2/roll]
5
Fiziology
Toxicology
Fiber Type
Combustibility
non-dangerous
non-dangerous
E-Glass
non-combustible A2:s1:d0
Description
For both thermal use and vibration damping in ventilation systems, we have the SONO-AL mat as an aluminium laminated outer face. The material is used for floor heating, thermal insulation and sound insulation of pipes, roofs, etc.
For thermal protection and use with vibration absorption in ventilation and smoke extraction systems.
In winter, it helps reflect the heat generated by indoor heaters under its solid reflectivity. Its low emissivity significantly reduces external radiation losses, allowing immediate energy savings and comfort. During the summer, the extremely low emissivity of Sono-AL prevents thermal radiation from interfering with the cold air within the ventilation.
Due to its non-combustibility with resistance up to 650°C, Sono-AL is a perfect option for smoke extraction systems in industrial or commercial uses as it offers the most suitable option for both effective and efficient use. Compared to the often used insulation products, Sono-AL is much easier to install by simply applying it on to duct system, which is already coated with the SonoFire thermal-resistant glue, without any need for strands or wires.
Application Method
